– PH1 –

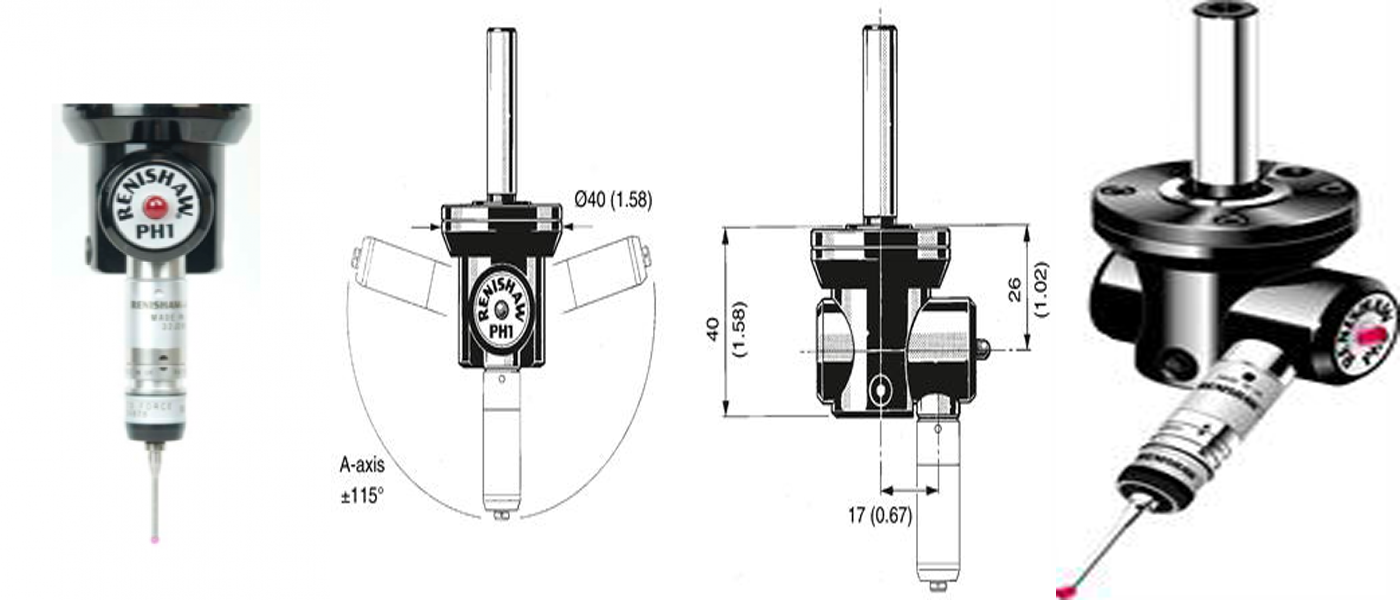

PH1 is a small shank mounted manual probe head with movement in the A and B axes, with limited overtravel protection.

The PH1 is a general purpose, swivel-type probe head. Its compact design makes it ideally suited to a CMM where manual orientation of a Renishaw M8 touch-trigger probe is required.

Weight	125 g
Probe mounting	M8 thread
Head mounting	MS range of shanks
Suitable interface	PI 200-3
Probe status indication	1 LED
Cable connection	5-pin DIN 180º socket
A-axis indexing	Swivel of 115° locked with hexagonal key (3 mm A/F)
B-axis indexing	15° steps through 360°
